Anti-Kletter-Schwenkbarrieren-Tor: Die Mischung aus großem Zugang und erhöhter Sicherheit

Anti-climb swing barrier gate is a helpful barrier in between extremes. It is bigger and more comfortable to pass through than several small turnstiles, provides more physical obstacle than a simple waist-high swing gate.

That may seem like a simple thing to say, but when specifying this type of entrance, you can often go wrong. It is not possible to have a secure gate with just a taller panel. Authorized users could be followed by someone who is following closely, someone could move through an unfinished side gap, force the barrier and use railings and furniture nearby for climbing.

The barrier structure, access control systems, Durchgangssensoren, requirements for floor anchoring, boundary around the area and emergency logic must all be planned as one system and correctly executed on the gate to function properly.

This guide is designed for security consultants, Systemintegratoren, Fabriken, Schulen, Lagerhäuser, Wohngemeinden, office parks and/or public buildings who are seeking greater pedestrian access combined with anti clumping features.

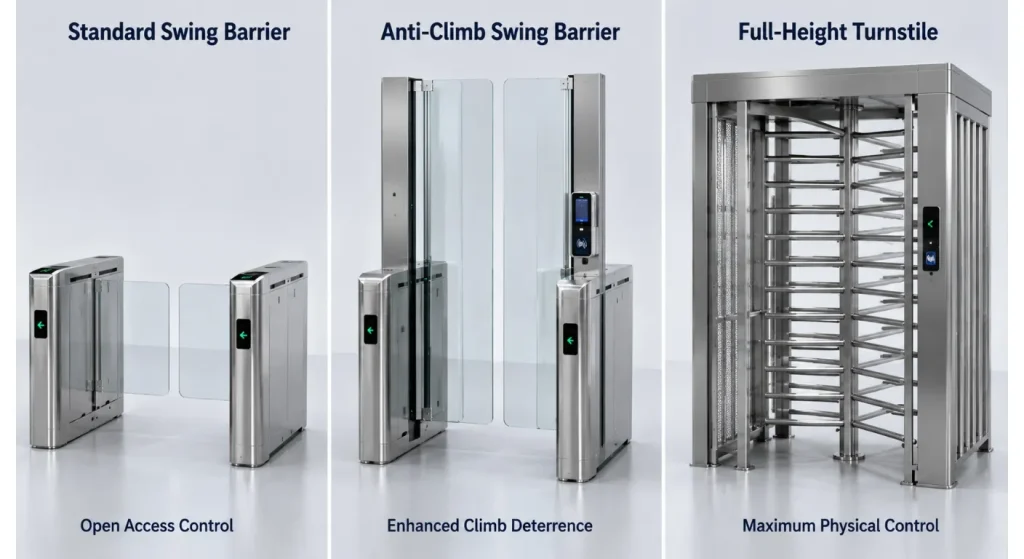

Projects select an Anti-Climb Swing Barrier Gate for a variety of reasons

A typical swing barrier is usually used due to its quiet operation, natural appearance of being open, and because it can be used alongside wheelchairs, Gepäck, service carts or equipment-carriers. Its loophole is also precariously visible—an unobstructedly short barrier offers little protection if it is a site where there is a concern with climbing or bypassing.

A turnstile free up takes up more space and alters user experience as opposed to a full-height turnstile which does form a full physical boundary. It takes up more space, is more constrictive and can't be used if the building owner prefers an open front but has also a staffed top-gate.

A swing barrier gate that is anti-climb will typically be used in situations where all of the following are needed:

• Wider pedestrian passage
• Stronger physical deterrence
• Control and detection of access and passage automated

Is not an alternative to all high security entrances. Rather, it is a practical solution for locations with a requirement for increased control than a low swing barrier could offer that do not necessarily have an engineering requirement for a full-sized rotating structure.

Begin by thinking about how anyone could circumvent entry to the building

What is a helpful security conversation that should start with, is a slightly uncomfortable question – how could someone access without permission?

It could be going over the barrier, unter, following someone, pushing into the barrier, squeezing through a gap in the fence, and just walking round to the end of the lane.

It's a variety of issues that different characteristics can't address.

Security Risk	Main Control	Supporting Measure
Climbing over	Taller reinforced panel	Remove nearby footholds
Crawling under	Controlled bottom clearance	Check finished-floor level
Zu dichtes Auffahren	Infrared sensor logic	Alarm and security response
Side bypass	Continuous wall or railing	Close cabinet-side gaps
Forced pushing	Strong mechanism and alarm	CCTV or guard intervention
Invalid credential	Access controller	Reader and software permissions

This isn't important if the word anti-climb is applied as a catch-all term, rather than specifically referring to anti-gravity. Any potentially risky bypass should be identified, and if the proposed design will not prevent the bypass, then it should be identified as a risk that will need to be monitored using railings, fences or staff response.

Stop focusing on the obstacle's height at the top of the barrier

Usually the first specification buyers ask of is height. Sure it does but it can't be just it.

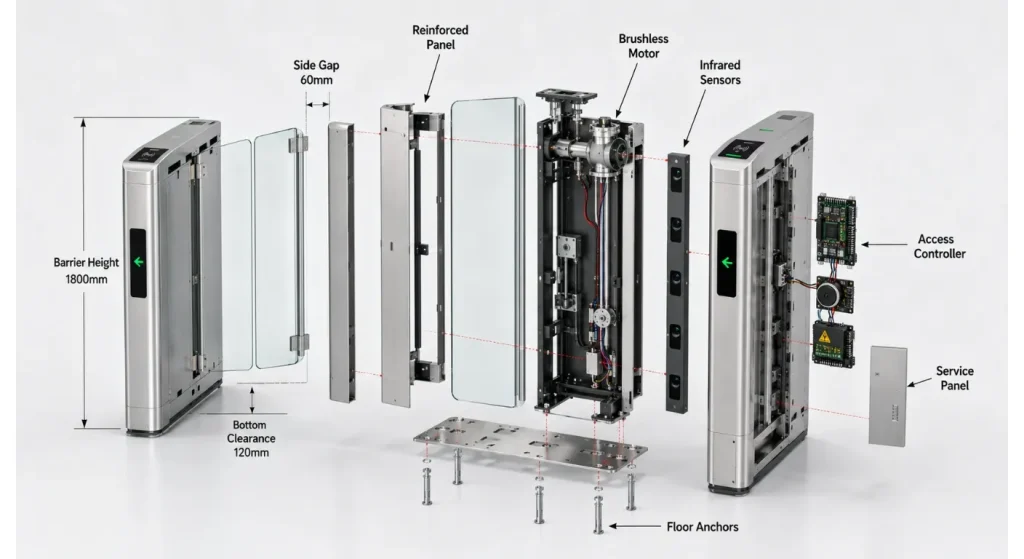

The panel is intended as a component of a larger mechanical assembly comprised of the frame, motor, transmission, Kabinett, hinges and fasteners, the control board and the floor anchors. Its shape is important as well. Handholds and footholds could be easily provided by horizontal rails, exposed brackets, decorative bars or areas of low wall near by.

Please check with the manufacturer:

• The snow does not accumulate higher than the barrier.The snow tends not to pile up over top of the barrier.
• The type of changes a panel can undergo to close and opening it.
• B: Pass underneath the barrier
• The amount of distance between the panel and the cabinet.
• A key variable will be the “dist” – the distance to the walls or railings nearby.
• Wavelength
• Ability to operate vehicle selected for study.Motor skill for the panel chosen.
• The following requirements are for foundation and floor-anchors:
• A means to gain access to the enclosed fasteners and service panels.

Ironman Anti-climbing swing turnstile info includes reinforced barriers, sensor operation and RFID, biometrisch, mobile and QR access. The above mentioned features are helpful but the completed structure needs to be compared to the entrance drawing.

Customization should also be mentioned as it will have an impact on the gate. Increasing the panel size, changing panels' material components, or widening the lane can add to the motor, and cabinet load. Such alterations could call for a new testing method, foundation and/or mechanism.

Maintain a security boundary

The most prevalent design error is made near the gate and not within.

The barrier can be rather high and supported, but someone can easily step between the cabinet and the wall. The failure is not of the product. Failure to plan the boundary.

Gesamtergebnis, the yellow line should extend across the entire entrance to the building. This can be achieved through fixed glass panels, metal railings, fencing, controlled/operated doors or a WeGuarded Reception boundary.

Furniture also needs to be taken into consideration. It is important there should not be a easy jumping-off place like a bench, planter, waste bin, display stand, temporary barrier or stored materials next to the panel.

layout review should not only be within the dimensions of the turnstile footprint, but all the turnstile space between wall-to-wall. Also now is a good opportunity to affirm:

• Camera coverage
• Guard visibility
• Queue direction
• Leserposition
• Alarm location
• Maintenance access
• Emergency movement

A reputable manufacturer will seek full clues to the entrance plan prior to confirming the plan of the product.

Anti-climbing is not anti-tailgating, and vice versa.Anti-climbing is not anti-tailgating and vice versa.

The higher the barrier the less likely that anyone will want to clime. Does not prevent two people from passing at the same time.

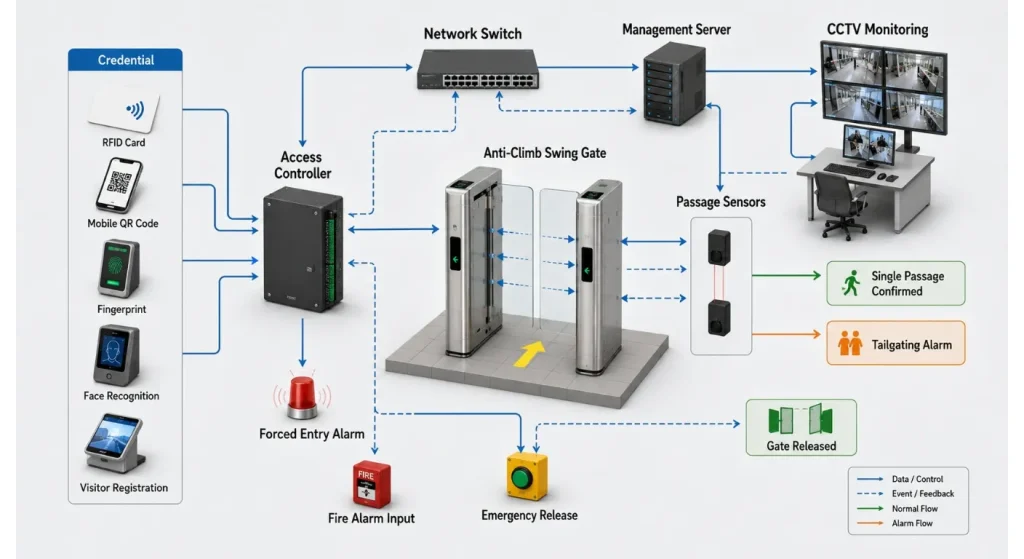

The infrared sensor array and the passage-control logic are the key components of anti-tailgating. The system must be aware of the location of a person, if the credential has been approved, if the passage has been completed, and if a different person entered the same cycle that the Person who was approved to enter opened.

These are some of the scenarios where detection is useful:

• To enter, with only two people needing an authorization.
• A second time mother, I will follow.A second person following afterward,
• Falsche Richtungsbewegung
• Use of the system prior to the approval of credentials
• A person braking in the lane.Person that has temporarily halted in the lane.
• A barrier non-clogging tool, blocked by an object
• Partially passed out secondary school graduation examination
• Maneuvering after entering into an element of the element group.After entrance, a person changing direction.

Request a sensor position drawing, and a description of operating logic in writing from the manufacturer.

That's not enough: a statement like “anti-tailgating supported” is not sufficient. Buyer should be aware of the following: Gate open, Gate will not open for any period of time, Gate will close after opening, Gate will open if it detects abnormal open or it will open upon abnormal close.

The alarm also should have an objective. A warning light or relay output is only helpful when it's at a guard, management platform or CCTV system or other response point.

Choose Access Method: Around Real Users

The gate can be used with a variety of technology such as RFID cards and credentials, QR-Codes, Fingerabdrücke, Gesichtserkennung, PIN terminals and more.

This will vary depending on the type of users, and their usage mechanisms, of the entrance.

Working in a factory setting, employees might prefer to use cards as the gloves, dirt and worn fingerprints on the cards may impact the use of biometrics. QR codes may be given to the visitors for the duration of their visit. Since it is a restricted laboratory, cumbersome card-plus-biometric verification may be needed. A temporary credential in addition to a security-desk release may be necessary for a residential community.

The people who are interested in the relevant reading and control could be reviewed by Zugangskontrollausrüstung. Software options must also be checked if you're involved in a project that would need software integration to the turnstile gate as well.https://www.ironmanturnstile.com/turnstile-gate-sdk-api/.

Vor der Produktion, Definieren Sie:

• This product contains Reader model/dimensions.
• The height and angle at which the mounts are installed.Mounting height and angle.
• Opening signal
• Communication protocol
• Access to the room, outside areas and various other entrances
• Offline-Betrieb
• Alarm output
• Event records
• Software responsibilities

It is not an approved drawing or purchase order to indicate that it is compatible with access control. Der Leser, Controller, software and gate logic - the software together with the reader and controller - should all be tested together.

Wider passages are usually countered by stronger structure

The main driver towards deciding on a swing barrier gate is that it opens up the opportunity to make a wider lane. This can enhance the accessibility for wheelchair users, Besucher mit Gepäck, staff who carry equipment and/or service carts used in the building.

But with a wider or taller panel, comes the need for more design concerns. The manufacturer should examine the load of the motors, opening space, closing speed, the area that the sensors cover, cabinet stability, and wind exposure.

Project Need	Hauptüberlegungen	Detail to Verify
Wheelchair passage	Clear lane width	Review the complete accessible route
Luggage and carts	Longer passage time	Check full-lane sensor coverage
Outdoor installation	Wind and drainage	Confirm panel and motor suitability
Higher security	Smaller surrounding gaps	Compare with full-height options
Busy entrance	Fast validation and reset	Test actual pedestrian flow

Please note, per the U.S. Zugangstafel, turnstiles would not be considered part of an accessible route if applicable to U.S. Projekte. This may then necessitate an adjacent accessible gate/door if the entry design calls for this feature. Not simply because it's wide enough can be interpreted as a statement that it is now accessible. Be sure to double check the official instructions on how to use the entrance, doors and gates.

Sicherheit, access and user friendliness should be the overarching design priorities not just at the end of the design process.

Don't leave a stone unturned or avoid all abuse

An anti-climb swing barrier is frequently used in factories, Schulen, Lagerhäuser, residential compounds and outside campus doors. In these areas, the gate may be exposed to the elements, cleaning materials, fluctuations in temperature, damage from accidents or intentional abuse.

Examine each individual component individually:

• Stainless-steel cabinet
• Barrier panel
• External reader
• Controller compartment
• Cable entries
• Fasteners
• Internal drainage
• Floor anchoring
• Motor and transmission
• Emergency controls

A general 'outdoors' description does not indicate parts that are protected!

Read the IEC, which states that the rating is a way of measuring the level of protection that an electrical enclosure can provide dust and water. For both tests, ask the class what enclosure was tested and do they think adding reader holes, displays, cable glands and/or other custom changes would have an impact on the tested configuration. For IEC's overview of the IP ratings see here: See the IEC overview of IP ratings. https://www.iec.ch/ip-ratings

For a short swing arm, tall panels are going to cause more wind resistance than a short swing arm. Manufacturer should verify at unexposed sites, that the size of the panel, motor, Kabinett, Anker, and the foundation selected is appropriately suited to local conditions.

It's important to establish the standard for what behavior you consider failure and what behavior you consider emergency in advance

There still needs to be a safe entrance that will act sanely even if normal operating conditions are removed.

The project team, which are the ones that will have to decide, should agree on what happens during:

• Stromausfall
• Netzwerkunterbrechung
• Controller failure
• Fire-alarm input
• Emergency-button activation
• Motor obstruction
• Sensor fault
• Manual security release

The barrier can open automatically, can be manually unlocked for operation, it may be controlled or it may switch to the jurisdiction of security personnel depending on the location.

Care must be taken with such decisions until the equipment has arrived at the site. The end-behaviour may require the attention of the architect, Feuerberater, security designer, system integrator, operator and the local authority.

The manufacturer's job is to describe what the gate can do, specify the signal inputs the gate must have and perform the logic test before sending out the gate.

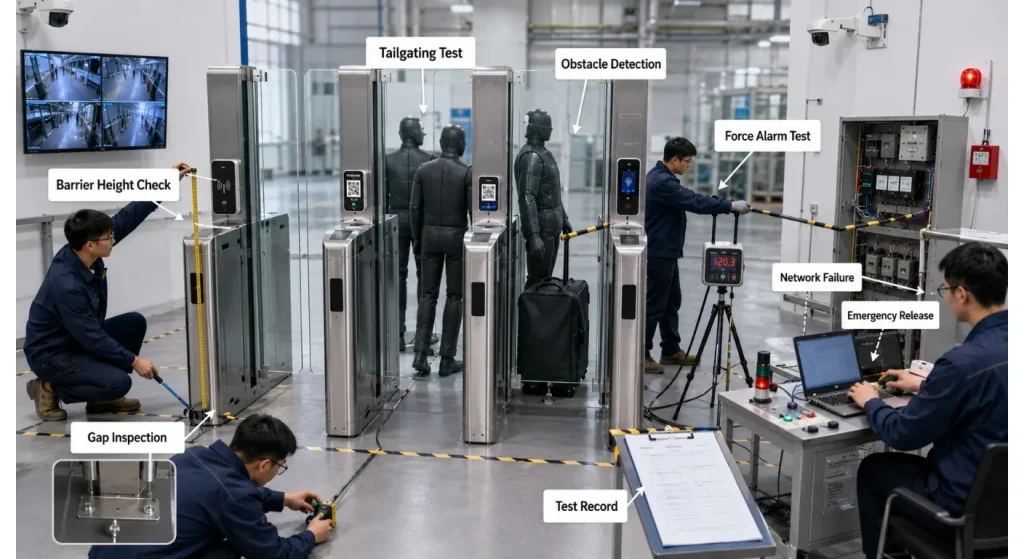

Perform the Test with the Real Project Configuration

Ideally, the completed dimension of the panel; Der Leser (or device); the controller; the sensor configuration; and the software signals should be used to perform factory acceptance testing.

Empfohlene Tests umfassen:

• Old and incorrect cards; expired cards
• This will require one permission and a one-person pass.
• Zu dichtes Auffahren
• Falsche Richtungsbewegung
• Hinderniserkennung
• Passage-Timeout
• Release the control for a closed panel.Release the control control one panel.
• Alarm output
• Netzwerkunterbrechung
• On/Off Power Button, Handle Power Loss
• Set the alarm or emergency unit input data.Program the data for the alarm or emergency unit.
• Remote security release
• Repeated operating cycles
• Event recording

Climbing resistance should be measured using safe fixtures, test objects, measuring tools and procedures. Never ask employees to demonstrate live climbing if it could be unsafe for them.

Ask for test videos, Inspektionsunterlagen, approved drawings and drawings for wiring, software versions and serial numbers, photographs of the packaging and a recommended parts list.

When the showroom sample is not the same as the final product, because of different panels, Leser, lane width or controller, testing a showroom sample is insufficient.

Create an informative RFQ

An enquiry of what the “best anti-climb gate price” is seldom yields a dynamic response.

Stellen Sie bereit:

• P1) Application to a project and country
• The number of entries and lanes.Number of lane(s) that enter the facility.
• Main security concerns
• Required barrier height
• Passages must be a standard width of 1.5 m, and a minimum width of 1.25 m.
• Identifies components of a wall, fence, or railing.Describes features of a wall, fence or railing.
• If you:When you:
• Linking and joining readers together.
• Access-control platform
• The area for tailgating and alarm must meet the following standards:
• The position of the CCTV or guard station is important.
• To take the temperature inside or outside of the building
• Barrierefreiheitsanforderungen
• Notfallverhalten
• Finish and branding
• Travel and testing of any kind.Traveling to and testing of all monitoring scopes.
• Set up handling of spare parts and delivery schedule.Establish spare parts and delivery times.

Share the information online via the Ironman contact page for a project-by-project review.

The more specific the description of the entrance, the more simple it will be to define the possible side gaps, integration restrictions, structural limits and possible emergency situations in advance of production.

Abschluss

When a project calls for making a large and easy swing gate but more physically challenging than a low swing gate, an anti-climb swing barrier gate can be beneficial. Its actual performance, aber, relies on a host of factors more than just the panel's height.

How they integrate and work together is of critical importance for the barrier, access control, Sensoren, surrounding boundary, foundation, emergency logic to the site supervision.

A known manufacturer will verify the complete entry, describe what the product will protect and won't protect, compile an inventory of all interfaces and validate the gates approved setup prior to shipment.

FAQs

An Anti-Climb Swing Barrier Gate is not the same as a full height turnstile.Anti Climing swing barrier gates are different to a Full height turnstile.

Nein. It offers more effective deterrent than a low barrier but a full height turnstile generally offers a more effective physical barrier.

Is it possible to get the Gate to detect the tailgating?

Ja, if it incorporates an appropriate sensor array and has the appropriate logic to determine when a passage should occur. The presence of two persons using one authorization can't be detected by the taller panel itself.

Will It Fit in a Wide/Large Lane?

It can be used to achieve greater clearance, though use will only be allowed where this is necessary; it will depend on the availability of the entire route and local accessibility. Find out the entire arrangement of the buildings and roads being built, not just the width of the lane.

When looking for a solution, many are wondering: will an Anti-Climb Swing Barrier fit for outdoor use?

Es kann so sein, but make sure that the anchor/motor, Kabinett, electronics and reader are compatible with the environment, as is the panel and drainage. Inquire which parts have been tested as being weather proof.

For a quotation, all of the following information is required:

Deliver drawing of entrance, barrier height, Fahrbahnbreite, boundary around the barriers, way of access, Verkehr, Umwelt, Notfalllogik, boundary to be tested, responsibility for installation.
